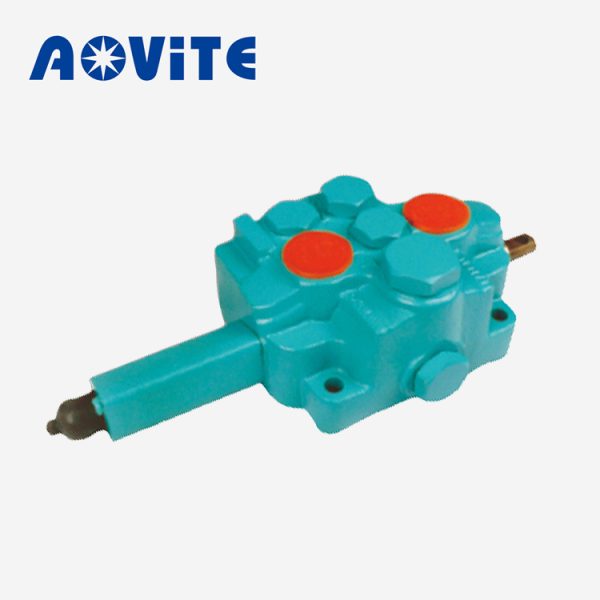

WCV series hydraulic control valve is used to control the hydraulic cylinder of “falling”, “floating”, “holding”, “lifting” function, This hydraulic valve can be controlled in various ways: mechanical control, hydraulic control and electric control, which can meet the control requirements under different working conditions.
| Nominal pressure(Mpa) | Nominal flow(L/min) | Unloading valve adjustment range(Mpa) | hydraulic oil(HL,HLP) | control method | |
| WCV35 | 25 | 250 | 10-25 | Mineral oils according to DIN 51524 | machine control |
| WCV50 | 25 | 250 | 10-25 | Mineral oils according to DIN 51524 | hydraulic control |
| WCV100 | 25 | 350 | 10-25 | Mineral oils according to DIN 51524 | hydraulic control、electronically control |
